Understanding Pumped Floor Screed: A Guide for Factory Managers

Blog Article

What Is Pumped Floor Screed? A UK Guide

A pumped floor screed is a cement-based layer pumped onto prepared concrete. It brings a worn, defective or uneven floor back to level. The screed is an engineered base, not an exposed wearing surface. It corrects profile variations so that a robust resin finish can carry day-to-day site traffic. Get the base wrong and the finish above it fails early.

Bumpy floors hinder automated equipment and block coatings bonding properly. Puddles collect during washdown. Forklift wheels take a beating. How do pump screed contractors assess whether your concrete needs a full pumped screed build-up before the resin goes down?

A pumped cementitious screed forms a true level plane across uneven concrete before long-lasting resin finishes are applied.
The screed acts as a levelling layer underneath, never as the exposed wearing surface in an industrial facility.
FeRFA classifications cover synthetic resin flooring only and never apply to cementitious pumped screeds or anhydrite underlayments.
A liquid damp proof membrane stops rising moisture driving the sealed resin floor away from its base.
Pricing and scope come from a physical site survey, never from floor area measurements alone.

Pumped Screed and Resin Finish Compared

Cementitious pumped compounds level a floor quickly across sizeable commercial areas. They remedy surface irregularity and produce a uniform plane for resin toppings. The two materials sit in the same build-up but do very distinct jobs. Facilities managers who grasp that difference specify the proper floor build-up first time, rather than paying twice.

The table below compares a pumped cementitious levelling screed with the resin finish that seals it. In practice, we notice that most specification errors arise here. One material reinstates geometry. The other carries traffic, chemical attack and cleaning regimes across a busy industrial site.

Property	Pumped Cementitious Screed	Specified Resin Finish
Primary Function	Substrate levelling and profile correction	Wear resistance, chemical protection and slip safety
Material Base	Polymer-modified cementitious compound	Synthetic resin (epoxy, polyurethane, polyaspartic)
FeRFA Classification	Not applicable (cementitious product)	FeRFA Types 1 through 8
Surface Role	Engineered base layer for subsequent systems	Exposed working traffic surface
Moisture Function	Receives resin above an isolating membrane	Provides a seamless, non-porous barrier

Pumped Screeds Compared With Resin Systems

Cement-Based Screeds and Synthetic Resin Floors

A cementitious pumped screed is not a resin screed. It is not a self-smoothing resin floor either. Cement-based compounds harness water and hydraulic binders to hydrate into a flat, rigid base. Synthetic resin floors use chemical polymers. They provide seamless abrasion resistance directly under ongoing workplace traffic.

Conflating the two triggers pricey specification errors. Resin systems must be placed over sound, even profiles. They are not bulk levelling materials. Levelling pronounced undulations with high-performance resin is cost-prohibitive. The cementitious material corrects surface deviation. The resin then handles chemical attack and mechanical abrasion.

Classification Boundaries and Domestic Screed Products

Never give a FeRFA type to a cementitious screed. FeRFA classifies synthetic resin flooring only. Its eight categories cover resin matrices from thin floor seals through to heavy-duty polyurethane screeds. Cementitious levelling layers sit under British Standards for screeds instead. They remain outside the resin classification framework entirely.

Commercial pumped screeds also vary from the liquid anhydrite screeds used in domestic underfloor heating. Anhydrite screeds contain gypsum. They dry slowly and stay sensitive to moisture. Industrial cementitious screeds dry predictably and provide a rigid sub-base for impermeable resin topcoats. Neither product should be confused with structural concrete.

Substrate Conditions That Require a Pumped Screed

Failed In Situ Screeds and Damaged Concrete

A failed in situ screed is an unreliable foundation. It cannot carry a new finish. Weak, debonding or disintegrating screed must be cleared back to sound concrete first. Cracking, hollow areas underfoot and deteriorating arrises all point to general failure. That failure warrants thorough mechanical breakout and a pumped replacement.

Damaged concrete presents impact craters, deep gouges and spalled joint shoulders. Persistent forklift movement causes most of it. Patching these defects locally across a wide area creates differential movement. A continuous pumped screed bridges the variation and fills deep voids. It recreates a flat plane that protects vehicle running gear and the concrete beneath.

Undulating Floors and Dusting Concrete Surfaces

Undulating concrete disturbs racking lines and makes material handling equipment rock. It also produces standing water during washdown. Thin coatings replicate every hollow and crest in the slab below. A pumped screed creates true surface regularity across broad open floor plates before any seamless finish is applied.

Weak or dusting concrete has poor surface cohesion. Improper curing or excess water during placement is the common cause. The friable laitance releases fine dust under every pass of a wheel. Pumping a screed over mechanically keyed, sound concrete encloses the subfloor. The result is a firm layer ready to accept a long-lasting resin system.

Did You Know?

Regulation 12 of the Workplace (Health, Safety and Welfare) Regulations 1992 requires every floor to be suitable for its purpose. It must not be uneven, holed or sloping to an extent that exposes anyone to risk. Floor condition is a legal duty, not a maintenance preference.

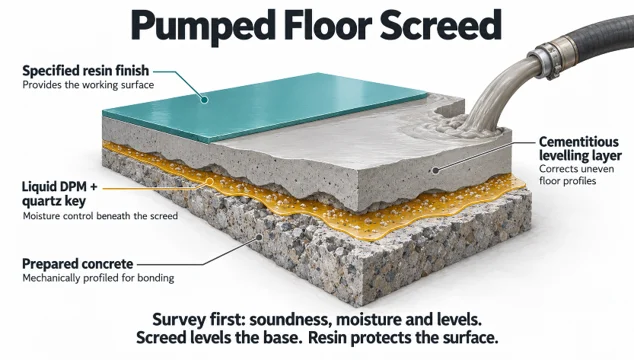

Floor Build-Up Sequence, Layer by Layer

Mechanical Preparation and Substrate Profiling

Mechanical preparation must expose aggregate before any primer or screed touches the floor. Captive shot blasting or diamond grinding strips weak laitance, dirt, previous coatings and curing agents. The impact opens the concrete pores. What remains is a textured profile that gives the applied layers a tenacious mechanical key.

The choice between shot blasting and diamond grinding depends on site conditions and contaminants. Shot blasting profiles huge expanses of open concrete quickly. It propels steel shot into the matrix and vacuums the debris in one pass. Near ongoing operations, concrete floor grinding with HEPA dust control provides an open-pored bonding plane without significant vibration.

Membrane, Quartz Key and the Screed Pour

Installers apply a liquid damp proof membrane once preparation is finished. Technicians scatter quartz aggregate into the wet resin immediately. Once that layer cures, the quartz grains provide an aggressive mechanical key. The crew then mixes the screed continuously and pumps it into position. They rake it to datum pins and smooth it to level.

The screed cures to an accurate level plane. Moisture and soundness checks follow before the specified resin finish goes down. The client may choose a high-build epoxy coating, a self-smoothing surface or a heavy-duty polyurethane screed. In every case the resin bonds permanently to the keyed screed, producing one combined assembly.

Moisture Control and Membrane Requirements

Why the Damp Proof Membrane Is Never Optional

A damp proof membrane is never optional beneath an impermeable resin finish. Moisture leaving a damp concrete slab creates hydrostatic pressure under the topcoat. Without an isolating barrier, that pressure pushes the sealed resin floor clean off its base. Blistering, adhesive delamination and total detachment occur.

A specialist liquid DPM forms an impenetrable barrier across the prepared concrete. Technicians apply an epoxy membrane directly onto the profiled slab and broadcast quartz into the uncured film. That step isolates every layer above from ground moisture. Residual building dampness then cannot move upward and ruin the topcoat bond.

Hygrometer Testing and Moisture Thresholds

Quantitative hygrometer testing provides the data necessary before anything is specified. Visual checks signify nothing, because a dry-looking surface often disguises a saturated slab. Technicians seal hygrometer boxes to the prepared concrete and measure equilibrium relative humidity. The readings show whether the floor needs a high-performance barrier membrane.

Ordinary resin formulations accept roughly 75% to 80% relative humidity within the slab. Readings above that range need a strong liquid Pumped Screed Floor membrane rated to suppress moisture up to 98% relative humidity. Avoiding the test courts accelerated bond line failure. Emergency remediation then costs far more than the testing ever would.

Industrial and Commercial Applications

Warehouses, Logistics and Distribution Centres

Warehouses and logistics hubs demand exceptional surface regularity. High-bay forklift safety and automated sorting both depend on it. Irregular profiles rock material handling equipment, degrade steering components and create joint impact damage. A pumped screed flattens transit aisles and marshalling areas before the forklift-rated resin coating is applied.

A pumped screed levels the building. It does not, on its own, make the floor heavy duty. Pump screed contractors should examine vehicle traffic before promising anything. Concentrated point loads from solid nylon pallet truck wheels require a specific epoxy or polyurethane finish above the screed. The screed achieves geometric tolerance. The resin absorbs abrasion and wheel shear.

Manufacturing Plants, Workshops and Fit-Outs

Manufacturing plants and precision workshops often run on concrete modified by decades of change. Machinery relocations, service trenching and chemical spillage all leave their mark. A pumped screed recovers level continuity across reconfigured assembly areas. It provides a secure platform for resin toppings that withstand oil, dropped tools and metal swarf.

Commercial fit-outs convert unfinished industrial units into showrooms, laboratories or retail space. A pumped screed removes steps, disused drainage troughs and undulating contours quickly. Paired with a self-smoothing or decorative resin finish, the build-up produces a clean, hygienic surface. It meets both workplace safety duties and the appearance standards the occupier expects.

Survey Procedures That Define Project Scope

Soundness, Moisture and Contamination Mapping

Scope comes from a physical survey, never from floor area alone. Surveyors use rebound hammers or scratch testing to verify the compressive strength of the slab. Weak, carbonated or friable concrete cannot bear a bonded screed. Those areas are mapped for vigorous removal before any pricing is raised.

Deep chemical contamination also needs mapping. Concrete soaked in cutting oils, hydraulic fluid or process chemicals refuses bonding agents. Specialists must degrease or scarify the matrix down to clean material first. From experience across the sector, contamination mapping and hygrometer testing together dictate the ultimate build-up.

Level Mapping, Joints and Door Thresholds

Laser level mapping identifies high spots and low undulations across the workspace. Technicians map the variation to compute the precise screed volume required for a unified plane. Visual estimates lead to material shortfalls or thin coverage over high spots during the pour. Precise mapping eradicates that risk entirely.

A survey also inspects floor joints, perimeter thresholds, access ramps and drainage channels. Existing movement joints must carry through the screed and the resin above, rather than being bridged rigidly. Door thresholds, machine plinths and gullies govern the boundary details. Chased anchor grooves finish the screed flush with adjoining fixtures.

Installation Programmes and Project Milestones

Daily Placement Rates and Site Access

Up to 1,000 square metres of screed can be placed in a single day across open floor area. That rate depends on three things. Mechanical preparation must be done and primer membranes must have cured. The crew also needs unobstructed hose access from the mixer unit outside.

That figure measures the screed layer alone. It is not the duration of the job. Substrate preparation, crack repair, membrane priming, quartz scatter and the multi-coat resin finish each demand their own window. Viewing a pumping rate as a project timeframe creates operational plans that collapse on day one.

Walk-On Time, Overcoating and Full Traffic

Walk-on time, readiness to overcoat and return to full traffic are three separate milestones. Foot traffic onto freshly placed screed is possible relatively early. That does not mean the screed will take a resin coating. Nor does it mean the floor can take heavy plant loads yet.

Readiness to overcoat demands confirmed moisture testing of the screed itself. The material must have cured enough to accept an impermeable resin topping without capturing water. Return to full traffic is the last milestone. It covers heavy forklifts and potent cleaning chemicals, and it is commissioned only once the resin finish reaches full cure.

Final Thoughts

A pumped floor screed rehabilitates degraded, undulating or poorly finished industrial subfloors. Pumping a high-strength cementitious compound across prepared concrete corrects undulation and surface degradation in one uninterrupted operation. The screed addresses geometry and subfloor integrity only. It does not replace the protective qualities of an industrial resin floor.

The screed fixes the base. The specified resin finish withstands the service conditions. Facilities managers achieve the best result when they treat a floor as one unified, multi-layer system. Mechanical profiling, moisture isolation, pumped levelling and resin coatings work together to create a compliant, hard-wearing workplace floor.

Frequently Asked Questions

Q: What is pumped screed flooring within an industrial facility?

A: Industrial pumped screed flooring is a flowable, polymer-modified cementitious compound. It is mixed on site and pumped through hoses onto prepared concrete. The purpose is to level bumpy, damaged or rough slabs quickly across big floor plates. In an industrial setting it acts as an underlayment that remedies the surface plane. It is not the final traffic surface. Once cured, installers seal it beneath a resin system that tolerates traffic, spillage and regular washdown.

Q: Can a pumped screed be left as the finished working floor?

A: No. A pumped cementitious screed is a base layer, not a wearing surface. It offers compressive strength and re-establishes flatness, but it stays porous. Under industrial traffic it is exposed to chemical staining, liquid penetration and surface dusting. For long-term serviceability, contractors seal the cured screed beneath a purpose-made resin finish. High-build epoxy and polyurethane coatings are the usual options. Both tolerate wheel abrasion, chemical spills and frequent mechanical cleaning.

Q: How much does a pumped floor screed cost per square metre?

A: There is no fixed rate per square metre. Scope stems entirely from a site survey. Cost depends on the mechanical preparation needed and the extent of substrate repair. The depth of undulation correction and pump access logistics also matter. Substrate moisture readings and the specified resin topcoat affect the figure too. Reliable pricing follows a physical assessment of the building. It cannot be estimated from floor area dimensions alone.

Q: Why is a damp proof membrane needed underneath the screed?

A: Moisture leaving a concrete slab produces hydrostatic pressure. That pressure drives a sealed resin topcoat away from the floor. A liquid epoxy membrane applied directly to prepared concrete creates an impermeable barrier against rising damp. Quartz aggregate scattered into the wet membrane then creates the mechanical key for the pumped screed above. The entire multi-layer assembly stays bonded. Without the membrane, osmotic blistering and delamination become a matter of time.

Q: Will a pumped screed make weak concrete structurally stronger?

A: No. A pumped screed safeguards the concrete and recovers surface flatness. It gives no structural load-bearing capacity to the building. If the slab displays structural movement, subsidence or dynamic cracking, a screed will not remedy it. The same applies to deficient slab depth. The substrate needs appropriate compressive strength and sound ground support before any screed is placed. Otherwise movement in the subfloor reflects straight back up through the screed and the resin finish.
